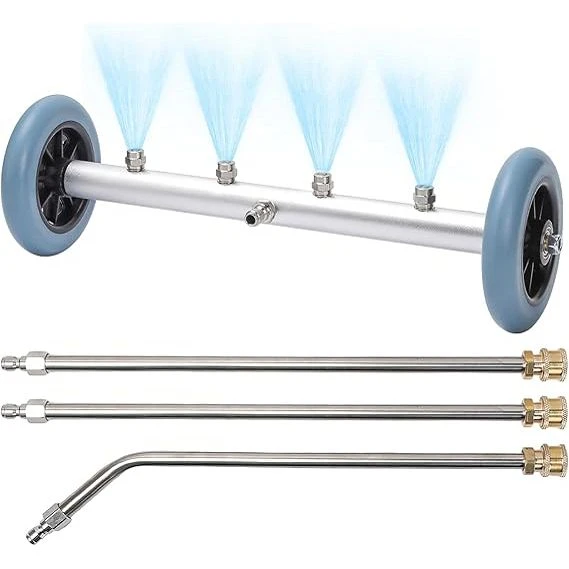

Undercarriage Cleaner for Pressure Washer
Designed specifically for high-pressure washers, this product uses multiple nozzles arranged in parallel to deliver high-pressure water jets to the vehicle chassis, wheel arches, and other hard-to-reach areas, reducing the need for manual bending and point-by-point washing.
Description
Designed specifically for high-pressure washers, this product uses multiple nozzles arranged in parallel to deliver high-pressure water jets to the vehicle chassis, wheel arches, and other hard-to-reach areas, reducing the need for manual bending and point-by-point washing.
Technical Specifications
|
Parameter |
Specification |
|
Model |
UC-4000-01 |
|
Working Pressure |
150–275 bar / 2,175–4,000 PSI |
|
Max. Pressure |
275 bar / 4,000 PSI |
|
Flow Rate |
7.5–15 L/min / 2.0–4.0 GPM |
|
Inlet Connection |
1/4" Quick Disconnect |
|
Nozzle Quantity |
4 |
|
Nozzle Orifice |
1.5 / 2.0 |
|
Spray Angle |
25° |
|
Nozzle Material |
Stainless Steel Core + Brass Housing |
|
Frame Material |
SUS304 Stainless Steel |
|
Caster Wheels |
2 × 5" 360° Swivel Casters |
|
Min. Ground Clearance |
120 mm / 4.7 in |
|
Cleaning Width |
400 mm / 16 in |
|
Water Temperature |
Max. 60°C / 140°F |
|
Dimensions |
400 × 350 × 120 mm |
|
Net Weight |
1.85 kg |
|
OEM/ODM |
Available |
Key Advantages
400 mm Cleaning Width
Four nozzles spray simultaneously, suitable for continuous cleaning of large areas such as chassis.
SUS304 Stainless Steel Construction
The main body is made of SUS304 stainless steel, suitable for long-term water contact and regular cleaning environments.
Multiple Nozzle Sizes
Available in 1.5 and 2.0 orifice diameters, which can be matched to the pressure and flow rate of the pressure washer.
360° Casters
5-inch casters facilitate movement and positioning, suitable for hard floors such as garages and repair shops.
Compatibility
Pressure and Flow Rate
Recommended for use with pressure washers of 2,000–4,000 PSI and 2.0–4.0 GPM. Actual configuration should be confirmed based on equipment parameters.
Interface Selection: Standard 1/4" Quick Connect; M22 and other interfaces available upon order.
Nose Matching: Suitable nozzle orifice size can be recommended based on the buyer's Pressure Washer PSI, GPM, and target application.
Construction and Quality
High-Pressure Jet Mount: SUS304 stainless steel jet mount supports the nozzle and water path, suitable for repeated high-pressure cleaning.
Anti-Clogging Design: A filter screen can be installed at the water inlet to reduce particulate impurities entering the nozzle.
Factory Inspection: Inspection of interfaces, seals, nozzles, wheelsets, and appearance; QC records available upon order.
OEM / ODM
Product Customization: Supports adjustments to nozzle quantity, orifice diameter, cleaning width, interface, and wheel configuration.
Brand Customization: Supports customization of logo, nameplate, color, label, and instruction manual.
Packaging Customization: Supports color boxes, e-commerce packaging, outer cartons, and bulk packing solutions.
Procurement Support
MOQ: Standard products start from 50 units; OEM orders typically start from 300 units, subject to the customized solution.
Samples: Supports sample procurement, which can be provided according to the target interface and nozzle configuration.
Delivery Time: Delivery time for standard products and OEM orders is confirmed based on quantity and customization.
Spare Parts: Accessories such as nozzles, connectors, and wheelsets are available.
Documents: Specification sheets, packaging information, QC, and applicable compliance documents can be provided according to market and order requirements.
