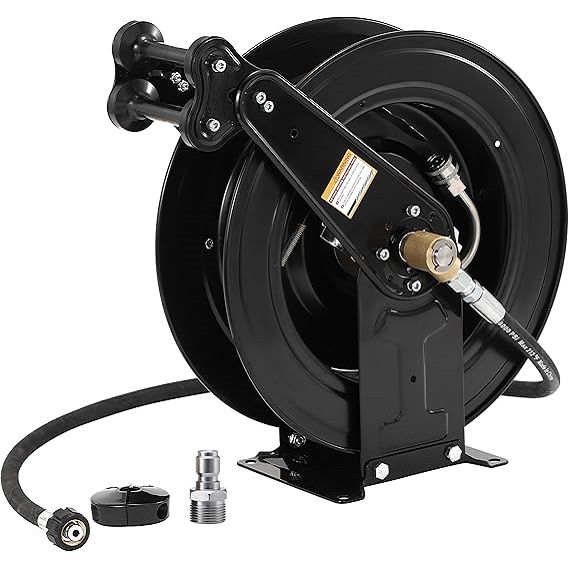

Self Rewind High Pressure Hose Reel

The GTM-Automic Self Rewind High Pressure Hose Reel is a heavy-duty steel reel for high-pressure water hose storage and controlled retraction.









Heavy-Duty Steel Reel Construction
The heavy-duty steel reel structure is designed for repeated hose deployment in professional cleaning environments, providing mechanical stability during daily operation and frequent handling.



Dual-Hose Configuration
The dual-hose design integrates inlet and outlet hose routing within one reel assembly, helping simplify installation where separate water supply and working hose connections are required.



Three-Layer Steel Wire Braided Hose
The three-layer, high-density steel wire braided hose construction provides the pressure resistance and mechanical strength required for repeated high-pressure cleaning operations.



Spring-Assisted Self Rewind
The spring-assisted rewind system reduces manual hose handling by automatically returning the hose to the reel after operation, supporting repeated extension and retraction cycles.



Safety Locking Mechanism
The locking mechanism allows operators to secure the hose at different working lengths during operation, improving control during pressure cleaning tasks.



360° Rotating Central Shaft
The 360° rotating central shaft allows the reel assembly to follow hose movement direction, helping reduce twisting and unnecessary stress on the hose connection.





The GTM self rewind high pressure hose reel consists of mechanical assemblies designed for hose storage, controlled retraction, and integration with high-pressure cleaning equipment.



Reel Assembly
• Heavy-Duty Steel Drum: Stores and guides the high-pressure hose during extension and retraction cycles. The drum structure is designed according to hose diameter and capacity requirements.
• Reinforced Frame Structure: Supports the reel drum, mounting points, and internal mechanism for stable wall, floor, or ceiling installation.



Rewind System
• Spring Return Assembly: Provides the mechanical force required for hose retraction and works with the locking mechanism to control rewind movement.
• Locking Mechanism: Engages with the reel drum to hold the hose at the selected working position and release the reel during rewind.



Rotating Connection System
• Rotating Shaft Assembly: Connects the fixed water supply with the rotating reel structure, allowing continuous hose movement during operation.
• Hose Connection Assembly: Integrates inlet and outlet connections according to the pressure washer system requirements and hose configuration.





Professional Car Washes
Installed at fixed wash stations where operators repeatedly move around vehicles during pressure cleaning. The reel keeps the hose at the cleaning point between operations and supports repeated extension and return.



Automotive Repair Workshops
Used in vehicle service areas where pressure washing is required around different service positions. A fixed reel provides a designated hose point without requiring the hose to be manually coiled after each job.



Manufacturing Workshops
Used near machinery maintenance and production areas where operators need a fixed high-pressure hose point close to the equipment. The reel can be positioned according to the layout of the cleaning or maintenance station.



Industrial Cleaning Areas
Applied at fixed cleaning stations in factories, workshops, and service areas where high-pressure hoses are repeatedly deployed during equipment or work-area cleaning.









Steel Reel Fabrication
Steel reel components are formed, machined, and assembled according to the specified drum dimensions, shaft position, and mounting geometry.



Reel Alignment
The reel assembly is aligned during production to maintain proper drum and shaft positioning.



Rewind Mechanism Assembly
The spring system, central shaft, drum, and locking components are assembled as a complete rewind mechanism and checked for proper operation.



Hose Installation
The specified hoses and end connections are installed according to the approved configuration, with hose routing checked against the reel assembly.



Final Assembly
The hose system, reel, mounting structure, rotating shaft, and operating components are assembled into the finished unit and checked against the approved product specification.





Rewind Function Test
The hose is extended and released to verify that the rewind mechanism returns the hose consistently and maintains controlled movement during retraction.



Locking Function Test
The locking mechanism is engaged and released to verify that the hose can be held at the required working position and released for retraction.



Rotation Test
The central shaft is operated through its intended range to check smooth rotation and proper hose movement without abnormal interference.



Pressure & Leakage Test
The hose and pressure-bearing connections are checked under the specified test conditions for leakage and connection integrity.



Final Inspection
The completed reel is inspected against the approved product specification, including assembly condition, hose connections, mounting components, and operating functions.





Zhejiang GTM Hi-Tech Intelligent Equipment Co., Ltd. has manufactured high-pressure plunger pumps, pressure washers, and related equipment since 1997. Based in Wenling, Zhejiang, China, GTM operates a 20,000 m² production facility with 150+ employees, 80+ patents, and 90+ product models.



High-Pressure Equipment Experience
GTM's product experience extends from high-pressure pumps and pressure washing systems to related accessories, including hose reels used for hose management and equipment integration.



OEM Manufacturing
GTM supports OEM orders with configurable hose specifications, connections, mounting arrangements, branding, and packaging. Technical drawings and project requirements can be reviewed before production.



Production & Inspection
Production and inspection requirements are confirmed against the approved product specification before production. OEM orders can include agreed requirements for hose configuration, connections, mounting dimensions, packaging, and inspection documentation.
