Manual High Pressure Hose Reel
Manual High Pressure Hose Reel suppliers

Manual High Pressure Hose Reel

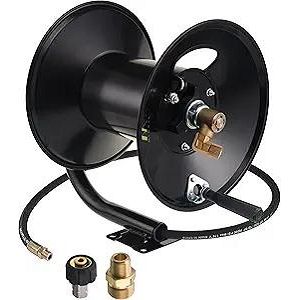

The GTM I Manual High Pressure Hose Reel is a hand-crank reel designed to store and manually rewind high-pressure water hoses for pressure washing, vehicle cleaning, garden maintenance, sanitation, and agricultural applications.

Send Inquiry

Description

Specifications

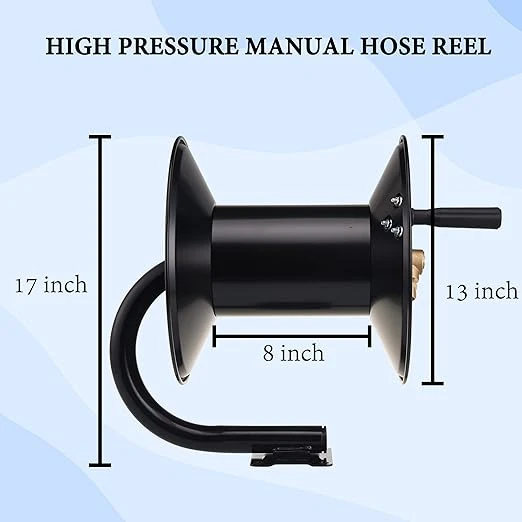

Specification	MHR-30	MHR-50
Model	MHR-30	MHR-50
Reel Material	Steel	Steel
Hose Capacity	Up to 30 m	Up to 50 m
Hose Diameter	3/8"	3/8"
Working Pressure	200 bar / 3,000 PSI*	200 bar / 3,000 PSI*
Connection Thread	M18 × 1.5*	M18 × 1.5*
Water Inlet	Copper Tube	Copper Tube
Mounting Hole Spacing	85 × 85 mm	85 × 85–126 mm
Rewind Method	Manual Hand Crank	Manual Hand Crank
Weight	4.25 kg	7.8 kg

Key Features

Steel Reel with Protective Coating
The steel reel forms the main load-bearing structure for hose storage, while the surface coating provides an additional barrier against oxidation during routine handling.

Manual Crank Operation
The side-mounted crank gives the operator direct mechanical control over hose retraction without requiring a powered drive.

Copper Water Inlet Tube
The copper inlet tube forms the water-flow connection within the reel assembly and provides corrosion and heat resistance for repeated water-handling service.

Four-Point Mounting Structure
The mounting base provides four fixing points for securing the reel to a pressure washer panel or other compatible equipment structure.

Quality Inspection Process

Production inspection covers dimensional accuracy, connection conformity, assembly condition, mechanical operation, surface finish, and final product verification.

Dimensional Inspection: Checks production dimensions against approved specifications.

Connection Inspection: Verifies the specified water connection and interface dimensions.

Assembly Inspection: Checks the reel assembly, crank mechanism, and fixing components.

Rotation Test: Checks manual rotation and crank operation.

Surface Inspection: Checks coating coverage and visible surface defects.

Final Inspection: Confirms model, configuration, assembly condition, and specified requirements before shipment.

GTM Manufacturing & Product Expertise

Manufacturing Experience
Founded in 1997, GTM specializes in high-pressure plunger pumps, pressure washers, and related cleaning equipment.

Production Facility
GTM operates a 20,000 m² manufacturing facility with 150+ employees serving high-pressure equipment and accessory production.

Product Development
GTM has developed 90+ product models and holds 80+ patents related to high-pressure pump and cleaning equipment technologies.

OEM Capability
GTM supports OEM requirements for high-pressure equipment and accessories, including product configuration, connection specifications, and equipment integration.

Packaging & Delivery

Individual Carton Packaging
Each hose reel is packed in a protective carton to reduce handling damage during storage and transportation.

Bulk Shipment Preparation
Multiple cartons can be palletized for larger orders, with packing quantities and loading arrangements confirmed according to shipment requirements.

Shipping Documentation
Commercial invoices, packing lists, and other required export documents can be prepared according to the confirmed shipment.

FAQ

Q: How do I choose the correct hose for a manual high pressure hose reel?

A: Check the hose outside diameter, bend characteristics, working pressure, length, and end connections against the reel's actual operating requirements before ordering.

Q: Can a manual hose reel be used with a hose supplied by another manufacturer?

A: Yes, provided the hose dimensions, pressure rating, connection configuration, and winding characteristics are compatible with the reel assembly.

Q: Can this type of hose reel be used as a replacement for an existing reel?

A: Replacement suitability depends on the existing equipment interface, hose requirements, connection arrangement, and available installation space. Equipment photos or drawings can be used for compatibility assessment.

Q: What causes a hose to wind unevenly on a manual reel?

A: Uneven winding can result from incorrect hose positioning, inconsistent manual guidance, excessive hose stiffness, or a hose diameter that does not match the reel configuration.

Q: How should a manual hose reel be maintained during regular use?

A: Keep the reel and hose free from accumulated dirt, inspect the hose and connections periodically, and check crank rotation and visible structural damage before continued operation.

Q: When should a manual hose reel be replaced?

A: Replacement should be considered when the reel has structural deformation, persistent crank or rotation problems, damaged connection components, or other defects that affect normal operation.

Q: Can the hose be changed to a different length after installation?

A: A different hose length can be considered if the replacement hose remains within the reel's capacity and maintains compatible diameter, pressure, connection, and winding characteristics.

Q: What information should I provide when requesting a hose reel quotation?

A: Provide the required quantity, hose outside diameter and length, working pressure, connection requirements, application, existing equipment information, and drawings or photographs if integration or replacement is involved.
