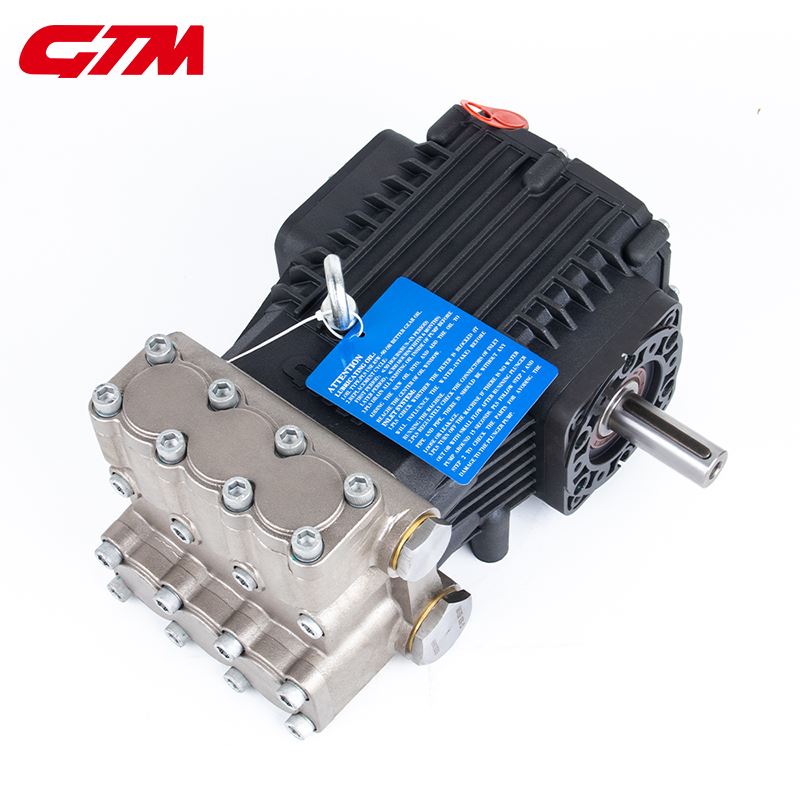

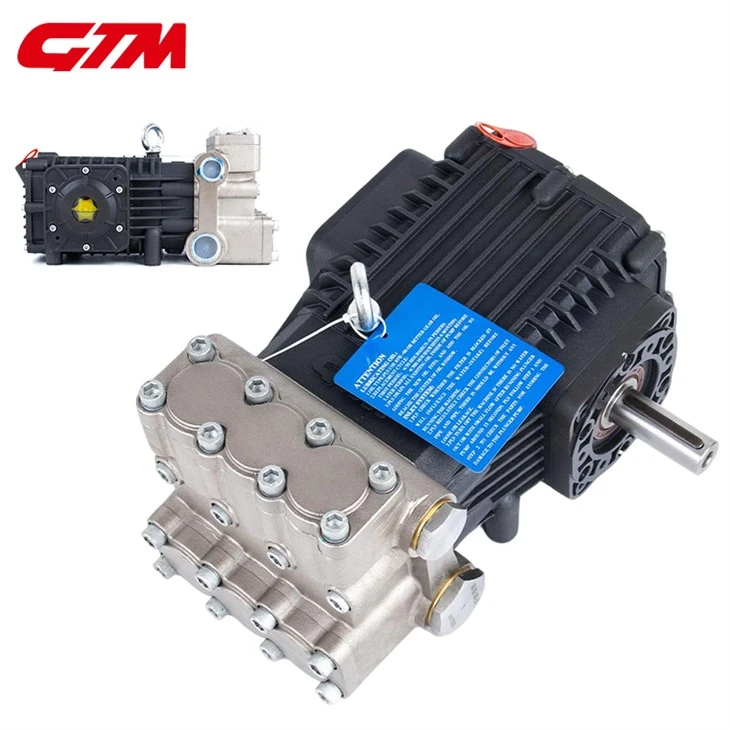

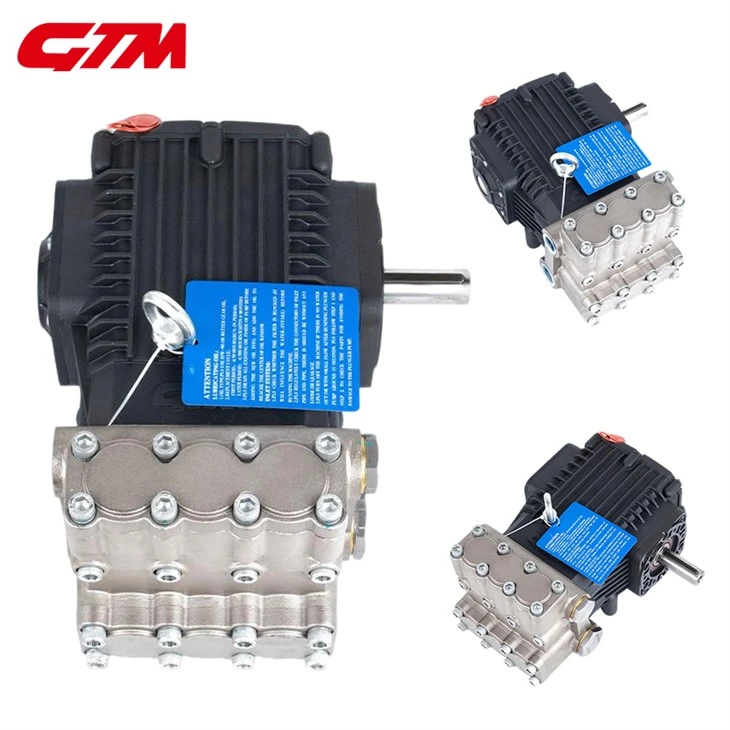

Chemical Injection Plunger Pump
The Chemical Injection Plunger Pump is a metering pump for high-pressure cleaning systems. It can steadily inject chemicals into the water flow at a set ratio, achieving continuous and precise dosing.
Description
The Chemical Injection Plunger Pump is a metering pump for high-pressure cleaning systems. It can steadily inject chemicals into the water flow at a set ratio, achieving continuous and precise dosing.
Technical Specifications
|
Item |
Specification |
|
Pump Type |
Reciprocating Plunger Pump |
|
Flow Rate |
Customizable |
|
Max Working Pressure |
Customizable |
|
Dosing Method |
Adjustable Injection |
|
Pump Head Material |
Brass / SS304 / SS316L |
|
Plunger Material |
Ceramic / Stainless Steel |
|
Seal Material |
NBR / EPDM / FKM / PTFE |
|
Chemical Compatibility |
Industrial Cleaners, Acids, Alkalis |
|
Inlet Connection |
BSP / NPT / Customized |
|
Outlet Connection |
BSP / NPT / Customized |
|
Drive Type |
Electric Motor |
|
Motor Voltage |
110V / 220V / 380V / 415V / 440V |
|
Frequency |
50Hz / 60Hz |
|
Protection Grade |
IP55 / IP65 (Optional) |
|
Installation |
Horizontal / Vertical (Optional) |
Product Structure
Pump Head: Withstands working pressure and delivers the liquid; different materials can be selected depending on the medium.
Plunger: Drives the liquid in and out; the core component for stable metering.
Check Valve: Prevents backflow, ensuring continuous and stable delivery.
Seal Assembly: Improves sealing performance, reduces leakage, and extends service life.
Pressure Regulator: Regulates working pressure to maintain stable system operation.
Drive Shaft: Connects to the drive system, providing stable power to the plunger.
Applications
Industrial High-Pressure Cleaning: Used for cleaning equipment, machinery, and production lines, improving decontamination efficiency.
Automatic Car Wash Equipment: Stable delivery of car wash liquid, foam liquid, and wax liquid, improving car wash quality.
Food Processing Cleaning: Suitable for food equipment and CIP online cleaning systems.
Petrochemical Industry: Used for equipment degreasing, descaling, and maintenance cleaning.
Water Treatment Systems: Used for chemical metering and fluid delivery.
Optional Configurations
Pump Head Material
Brass, SS304, SS316L, etc.
Sealing Material
NBR, EPDM, FKM (Viton), PTFE.
Interface Specifications
BSP, NPT, or custom interfaces.
Motor Configuration
Single-phase, three-phase, and various international voltages.
OEM Service
Supports customization of logo, color, nameplate, and packaging.
Manufacturing Capabilities
Independent R&D: Has an in-house R&D team, providing product optimization and OEM development support.
Precision Manufacturing: Utilizes CNC machining and standardized assembly to improve product consistency.
Stable Supply: Has mass production capabilities to meet long-term procurement and project order needs.
Quality Control
Raw Material Inspection
Key components undergo incoming material inspection before production.
Production Process Control
Standardized quality management is implemented throughout the entire process of processing, assembly, and debugging.
Factory Inspection
Each product undergoes pressure testing, sealing testing, operational testing, and final inspection before leaving the factory.
Customization Services
The following customizations are supported:
Operating Pressure
Flow Rate
Pump Head Material
Sealing Material
Interface Specifications
Voltage and Frequency
Exterior Color
Logo and Nameplate
Packaging Solutions
Packaging & Shipping
Safe Packaging
Uses plastic bags, shock-absorbing foam, cartons, or export wooden crates. Customization is available based on shipping method.
International Shipping
Supports sea, air, rail, and express shipping, and provides export packaging solutions.
